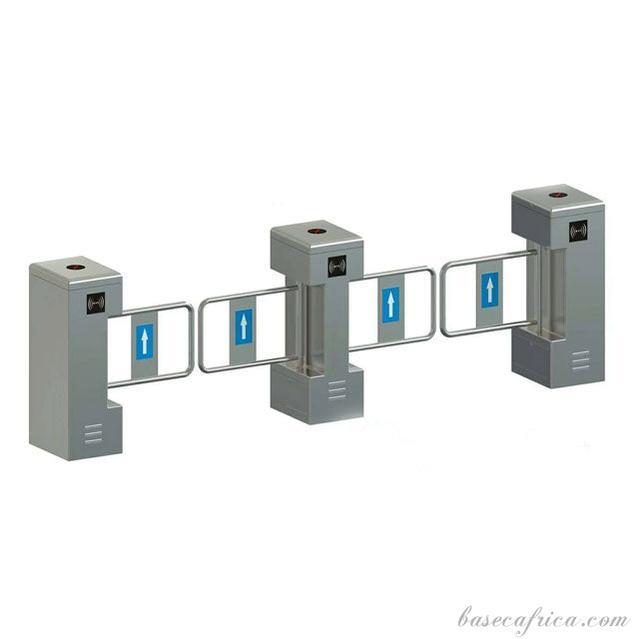

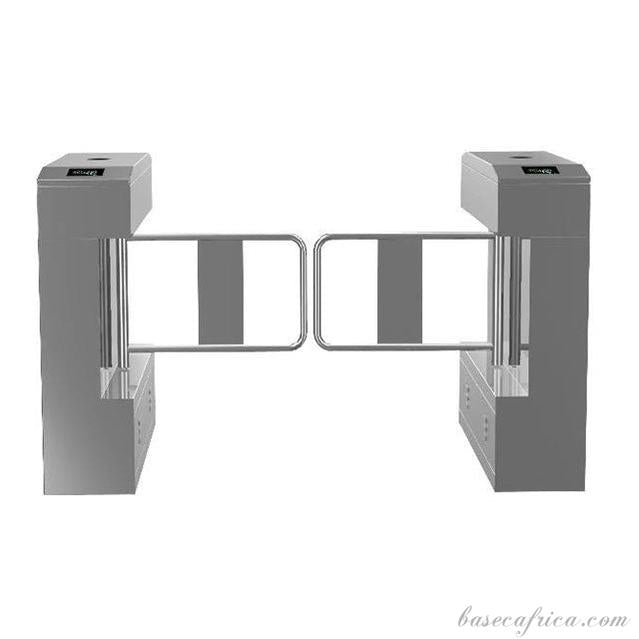

The Basec BAS-SGV01 Vertical Swing Turnstile Gate is a compact, space-efficient access control solution designed for environments that require controlled pedestrian access with a clean, upright form factor.

Unlike bridge-type turnstiles that sit horizontally across lanes, the BAS-SGV01 uses a vertical housing design with a motorized swing barrier, making it ideal for narrow entrances, corridors, receptions, and controlled walkways.

Each unit is supplied as a complete access control combo set, ready for immediate deployment and expandable to biometric and smart authentication methods.

Key Features

Vertical Swing Turnstile Design – compact and space-saving
Motorized Swing Barrier for smooth and silent operation
Anti-Reverse Entry & Anti-Tailgating Control
Clear LED Direction Indicators
Emergency Auto-Open / Free-Pass Function during power failure
Suitable for indoor and semi-outdoor installations

Technical Specifications (BAS-SGV01)

Type: Vertical Swing Turnstile Gate
Body Material: Stainless Steel (SUS304 / equivalent)
Barrier Type: Swing Arm / Swing Gate
Drive Mode: Motor-driven swing mechanism
Working Voltage: AC 220V ±10% (50/60Hz)
Control Voltage: DC 24V
Passage Width: 550mm – 600mm (customizable)
Opening / Closing Speed: 0.3 – 0.6 seconds
Throughput Capacity: 25 – 35 persons per minute
Operating Environment: Indoor / Semi-outdoor
Working Temperature: -20°C to 60°C
Communication Interface: Dry Contact / Relay / RS485
Emergency Mode: Auto-open / Free-pass supported

Access Control & System Integration

Inbuilt Access Control Board
RFID Reader
Access Control Software (Free)
Encoder for card enrollment & management
Expandable to support:
- Fingerprint Access Control
- Facial Recognition Access Control
- QR / Barcode Scanner
- NFC Mobile Phone Access
- PIN / Keypad Access

What’s Included (1 Unit / 1 Set)

Basec BAS-SGV01 Vertical Swing Turnstile Gate
Inbuilt Control Board
RFID Reader
10pcs RFID Cards (Free)
Encoder
Access Control Software
Integration-ready wiring support

Configuration & Usage Explanation

This model can be installed as:
- A single standalone unit, or
- Multiple units arranged for entry and exit lanes
Each unit is sold per set, not as a group
When installed in multiple lanes, units can be configured for:
- Entry-only
- Exit-only
- Bi-directional control

The vertical structure makes it especially suitable where horizontal bridge turnstiles may not fit.

Vertical Swing vs Bridge Swing (Quick Comparison)

Feature	Vertical Swing (SGV01)	Bridge Swing
Space Requirement	Very compact	Larger
Installation Area	Narrow corridors	Wide entrances
Visual Design	Upright & minimal	Horizontal bridge
Standalone Use	Supported	Supported (model-dependent)

Ideal Applications

Office receptions
Corporate lobbies
Banks & financial institutions
Schools & universities
Gyms & clubs
Government buildings
Controlled indoor walkways

Why Choose Basec Vertical Swing Turnstiles

✔ Compact & elegant design
✔ Flexible installation options
✔ Seamless access control integration
✔ Reliable motorized performance
✔ Designed for African operating conditions
