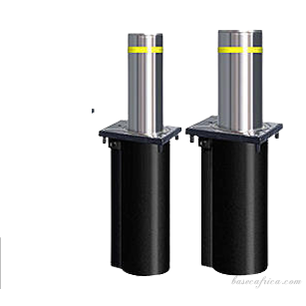

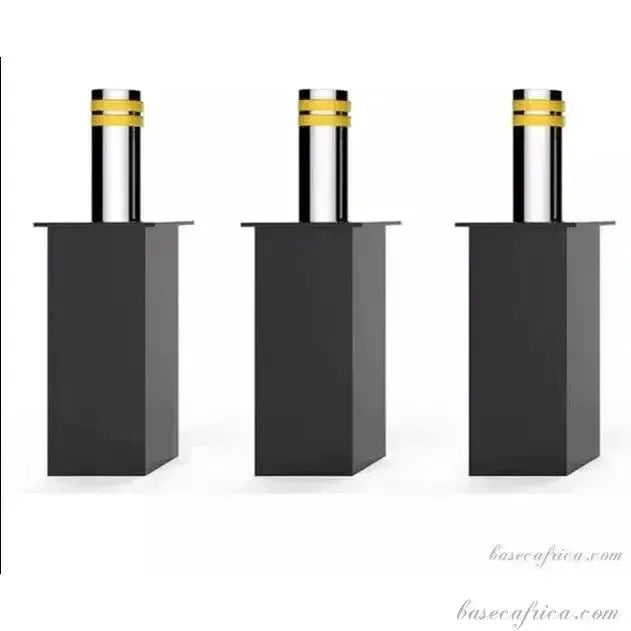

Hydraulic Rising Bollard - 168mm Automatic Integrated System

The 168mm Hydraulic Rising Bollard is a robust, high-performance security barrier designed for perimeter protection, traffic control, and access management in demanding environments. This fully integrated, automatic hydraulic system provides reliable vertical deployment to safeguard entrances, parking lots, industrial sites, and public spaces against unauthorized vehicle access. Engineered for durability and ease of use, it combines advanced hydraulic technology with premium materials to ensure seamless operation even in harsh weather conditions.

Key Features and Specifications

  • Power and Performance: Powered by a 220V AC supply with a 5.5kW hydraulic system, this bollard delivers efficient and powerful operation. The adjustable opening time ranges from 2 to 6 seconds, allowing for customizable deployment speed based on site requirements—ideal for high-traffic areas where quick response is essential.

  • Construction and Durability: Crafted from high-grade 304 stainless steel, the bollard offers superior corrosion resistance and longevity. The cylindrical body has a 168mm diameter and variable wall thickness from 6mm to 20mm, providing exceptional strength to withstand impacts from vehicles up to several tons. The overall dimensions are 360mm (length) x 360mm (width) x 1080mm (height), making it compact yet imposing for effective visual deterrence.

  • Deployment and Customization: The bollard rises to a standard height of 600mm above ground level, with customization options available from 600mm to 1000mm to suit specific security needs. It features an integrated hydraulic mechanism for smooth, automatic rising and lowering, controlled via remote, key switch, or integrated access systems. In the retracted position, it sits flush with the ground for unobstructed passage when not in use.

  • Environmental Resilience: Built to perform in extreme conditions, this bollard operates reliably across a wide temperature range of -40°C to +75°C. Its IP-rated enclosure protects against dust, water ingress, and environmental hazards, ensuring minimal maintenance and long-term reliability in outdoor installations.

  • Safety and Integration: Equipped with automatic safety features such as obstacle detection sensors (optional) and emergency manual override, the system prioritizes user and vehicle safety. It integrates seamlessly with existing security infrastructure, including loop detectors, traffic lights, and building management systems, for automated control.

Applications and Benefits

This hydraulic rising bollard is perfect for enhancing security at commercial properties, government facilities, residential complexes, and event venues. By creating an impenetrable barrier when raised, it prevents ramming attacks, controls vehicle flow, and delineates restricted zones. The stainless steel finish not only resists vandalism and weathering but also provides a sleek, modern aesthetic that blends with urban landscapes.

With its adjustable settings, robust build, and extreme temperature tolerance, the 168mm Hydraulic Rising Bollard offers unmatched value for investment in proactive security solutions. For custom configurations or bulk orders, contact us to tailor it to your exact specifications.
