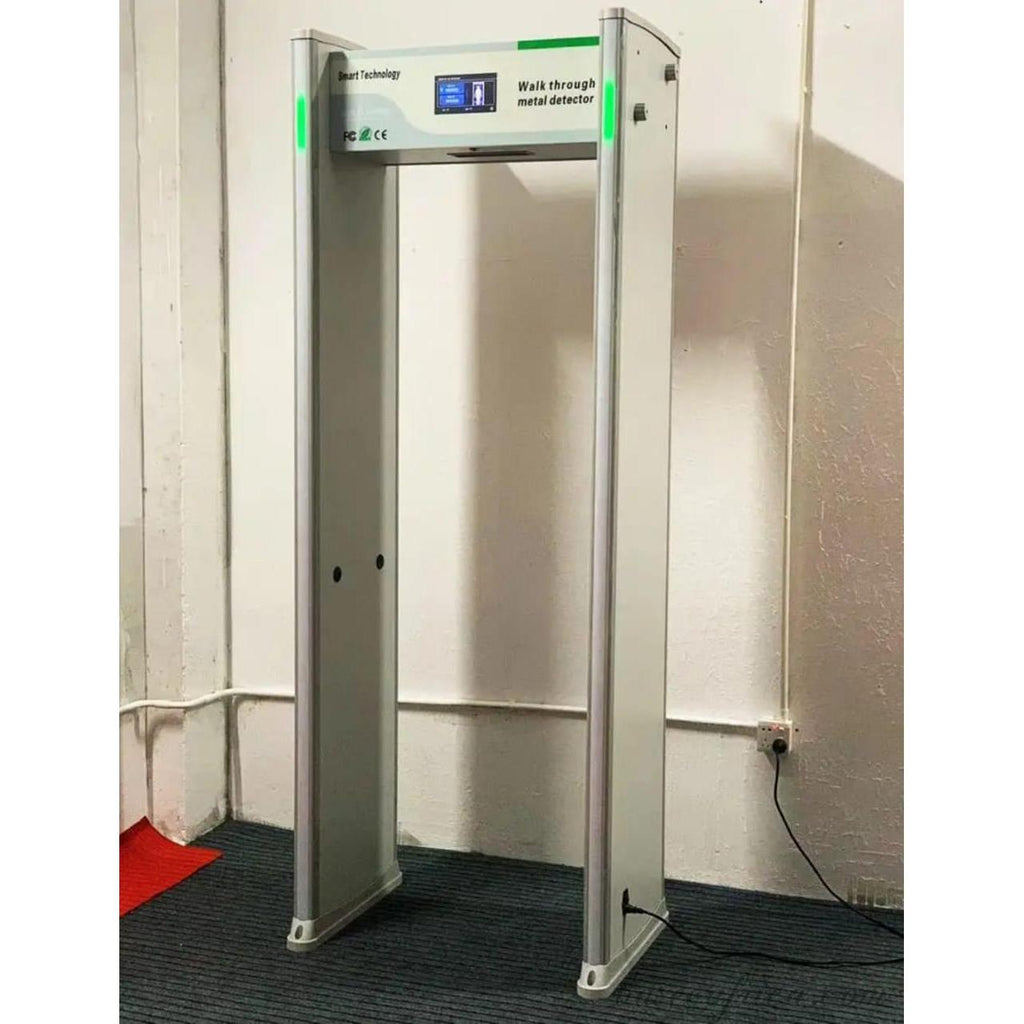

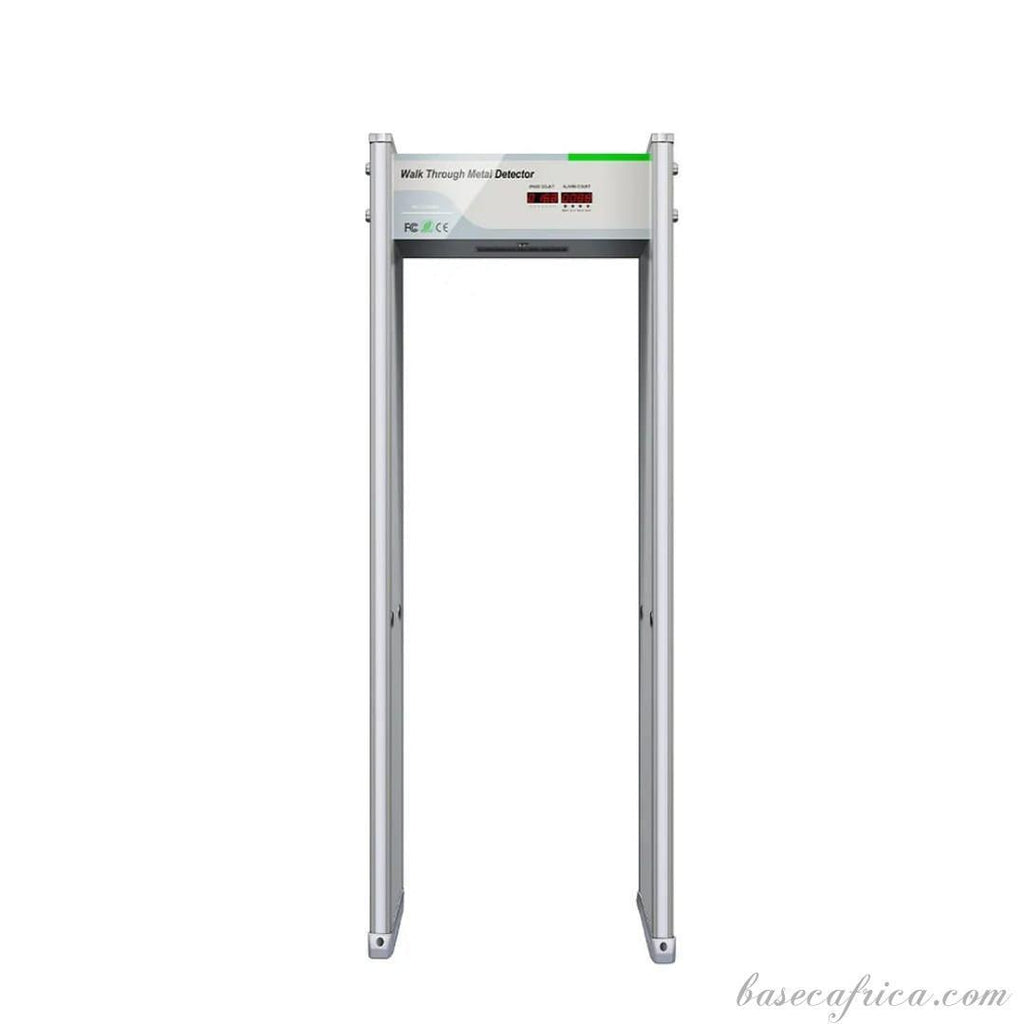

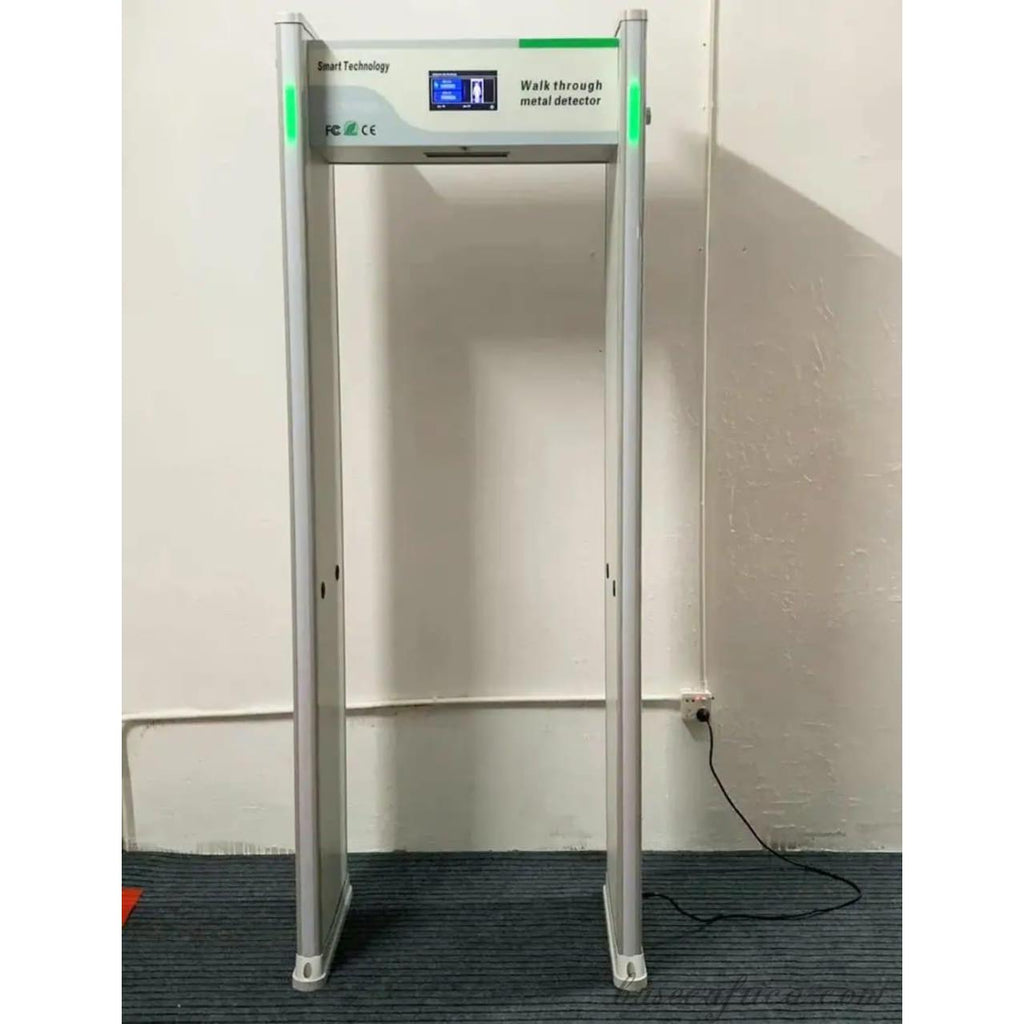

BASEC BAS33Z Smart Walk Through Metal Detector (33 Zones)
Regular price ₦1,500,000.00
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
BASEC BAS33Z Smart Walk Through Metal Detector (33 Zones)
✅ Advanced Multi-Zone Detection | Premium Security Solution
Product Description:
The BASEC BAS33Z is a next-generation smart walk-through metal detector engineered for high-traffic and high-security environments. Featuring a 7-inch LCD touch screen and 33 detection zones, this advanced security system provides maximum precision and control for protecting sensitive areas.
Crafted with high-strength fireproof materials and powered by DSP digital signal processing technology, the BAS33Z delivers exceptional detection performance and reliability, making it ideal for use in airports, government buildings, manufacturing plants, and events requiring strict security.
Key Features:
-

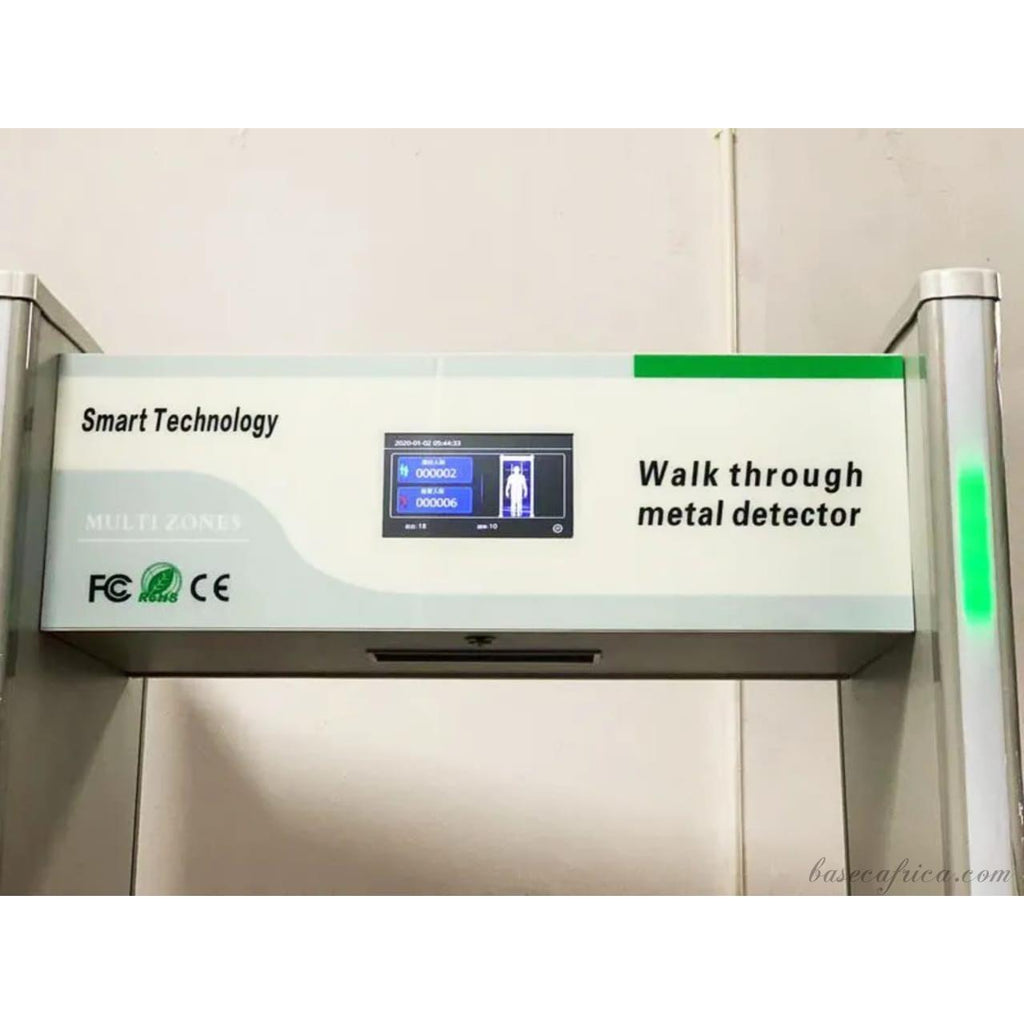

7-Inch Touchscreen Display: Intuitive interface for easy monitoring, configuration, and real-time status updates.
-
High-Quality Construction: Shockproof and fireproof materials ensure durability in demanding environments.
-

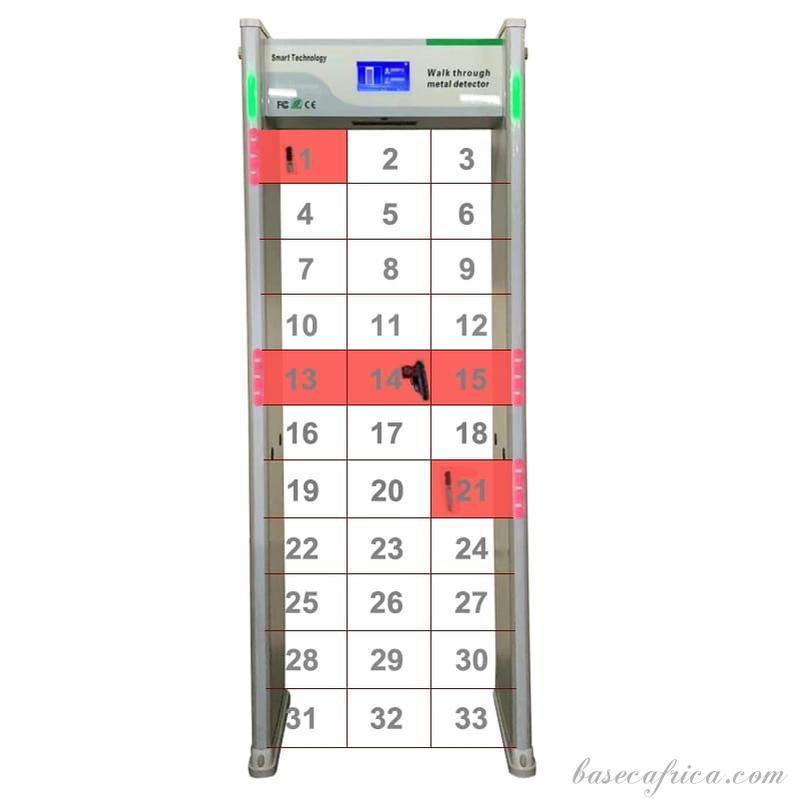

Flexible Zone Configuration: Choose between 6, 11, 18, or full 33 detection zones for customized security screening.
-
Precise Detection: Eliminates blind spots using a four-transmitter and one-receiver system for full body coverage.
-
Adjustable Sensitivity: Each zone has 300 sensitivity levels allowing tailored detection based on operational needs.
-
Intelligent Traffic Statistics: Real-time people counting and alarm record-keeping for security auditing.
-
Multi-Unit Synchronization: Adjustable operating frequency allows multiple units to work side-by-side without interference.
-
Password Protection: Only authorized personnel can operate or adjust settings.
-
Quick Installation: Modular integrated design enables setup or dismantling within 20 minutes.
-
Safe for All: Harmless to pregnant women, magnetic materials, and electronic devices.
-
Communication Ready: Reserved RS-485 interface for external device integration (cameras, access control systems).
-
DSP Technology: Enhances detection accuracy and minimizes false alarms.

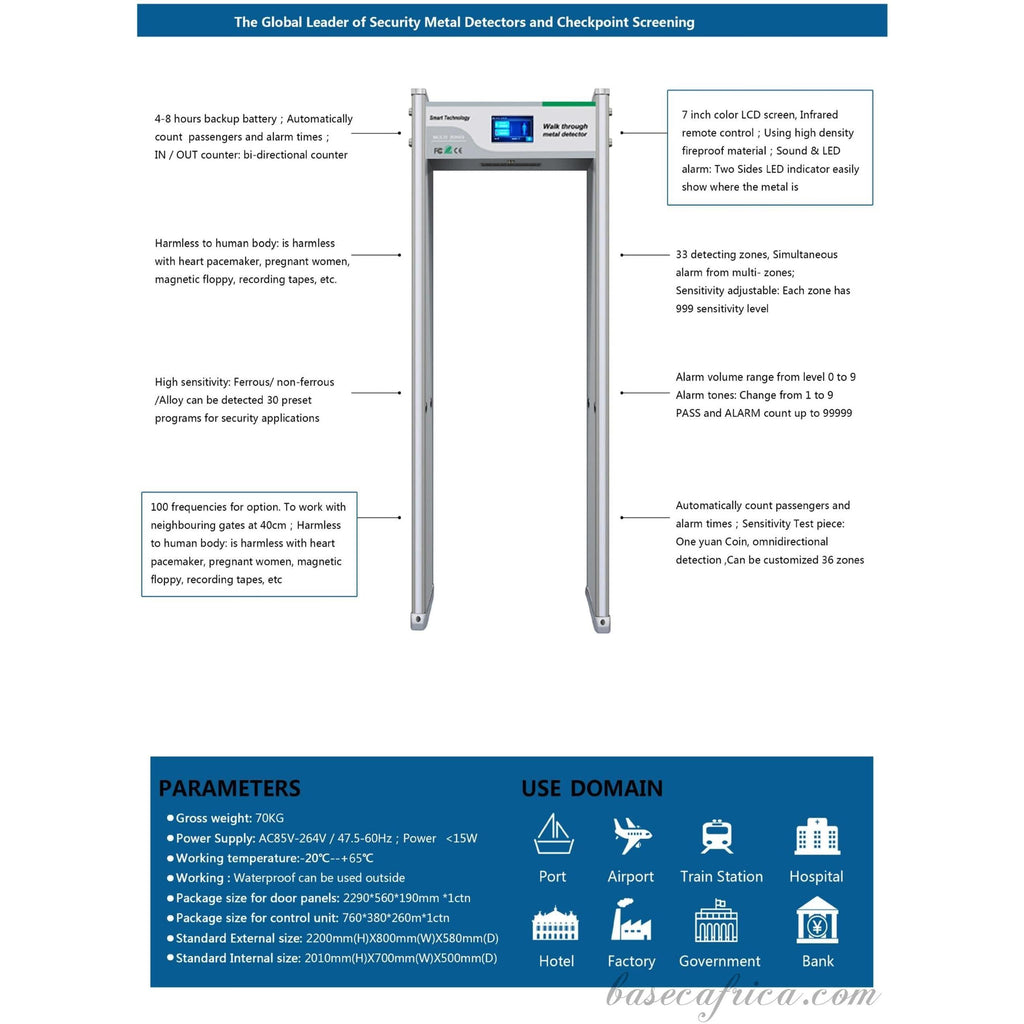

Technical Specifications:
| Feature | Details |
|---|---|
| Power Supply | AC 90-250V / 50~60HZ |
| Working Power | 20W |
| Working Temperature | -20°C ~ 55°C |
| External Dimensions | 2230mm (H) × 830mm (W) × 580mm (D) |
| Channel Dimensions | 2000mm (H) × 700mm (W) × 505mm (D) |
| Material Color Options | Black, Charcoal Gray, or Custom Color |
| Net Weight | 70 kg |
| Main Controller Box Size | 760mm × 490mm × 260mm |
| Legs Packing Size | 2270mm × 610mm × 175mm |
| Total Package Volume | 0.339m³ |
Package Includes:
-
2 × Leg Units
-
1 × Head Control Unit
-
1 × Installation Bolt Pack
-
1 × User Manual
Ideal Applications:
-
Airports & Seaports
-
Government Buildings
-
Factories and Industrial Parks
-
Correctional Facilities
-
Public Events and Concerts
-
Embassies and High-Security Offices
-
Educational Institutions
-
Commercial Complexes
🔒 Upgrade your security today with the BASEC BAS33Z – precision, reliability, and intelligent protection combined.
