Basec BAS-SGT08H High Glass Sliding Turnstile Gate With Control Board, Software, Encoder, RFID Reader and Cards( 1 Set )

Basec BAS-SGT08H High Glass Sliding Turnstile Gate With Control Board, Software, Encoder, RFID Reader and Cards( 1 Set )

Availability: Available

Product type: Turnstiles

Vendor: basecafrica

Regular price ₦2,500,000.00

The Basec BAS-SGT08H High Glass Sliding Turnstile Gate is a premium, high-security pedestrian access control system designed for facilities that require strict entry...

Download Product Datasheet

Single Motor

Double Motor

Subtotal: ₦2,500,000.00

Qty:

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Guaranteed safe checkout:

files/download_5_2bbaf150-70ca-4d3a-a235-928801f368b9.png

The Basec BAS-SGT08H High Glass Sliding Turnstile Gate is a premium, high-security pedestrian access control system designed for facilities that require strict entry control, modern aesthetics, and smooth traffic flow.

Built with high tempered glass panels and a stainless-steel structure, this model is ideal for environments where tailgating prevention, controlled access, and corporate finishing are important. Each unit is motorized, integration-ready, and supplied as a complete set with access control components for fast deployment.

Key Features

High glass sliding design for enhanced security and premium look
Smooth and quiet motorized sliding operation
Strong stainless-steel housing (rust-resistant & durable)
Anti-tailgating and anti-reverse entry control
Emergency auto-open/unlock during power failure or emergency
Supports high-traffic daily usage

Specifications (BAS-SGT08H)

Type: High Glass Sliding Turnstile Gate
Body Material: Stainless Steel (SUS304 / equivalent)
Barrier Material: Tempered Glass (High Glass Panels)
Working Voltage: AC 220V ±10% (50/60Hz)
Control Voltage: DC 24V
Drive Mode: Motor-driven sliding mechanism
Passage Width: 550mm – 600mm (standard lane) (customizable)
Operating Speed: ~0.2 – 0.5 seconds per person (depending on settings)
Traffic Capacity: 25 – 40 persons/min (depending on access mode)
Working Environment: Indoor / Semi-outdoor (recommended with canopy for outdoor)
Working Temperature: -20°C to 60°C
Communication Interface: Dry contact / Relay signal / RS485 (integration-ready)
Access Modes Supported: RFID / Fingerprint / Face / QR / NFC / Password
Emergency Mode: Auto-open / Free-pass option supported
Optional Add-ons: Battery backup, network module, fire alarm linkage, counters, LED indicators

(Note: Exact specs may vary slightly by configuration and client customization.)

Access Control & System Integration

Inbuilt Access Control Board
RFID Reader
Access Control Software (Free)
Encoder for card registration and user management
Expandable to support: Fingerprint, Facial Recognition, QR/Barcode, NFC Phone Access, Keypad Password

What’s Included (1 Unit / 1 Set)

Basec BAS-SGT08H High Glass Sliding Turnstile Gate (Single Unit)
Inbuilt Control Board
RFID Reader
10pcs RFID Cards (Free)
Encoder
Access Control Software
Integration-ready wiring support

Important Configuration & Buying Rule (Very Important)

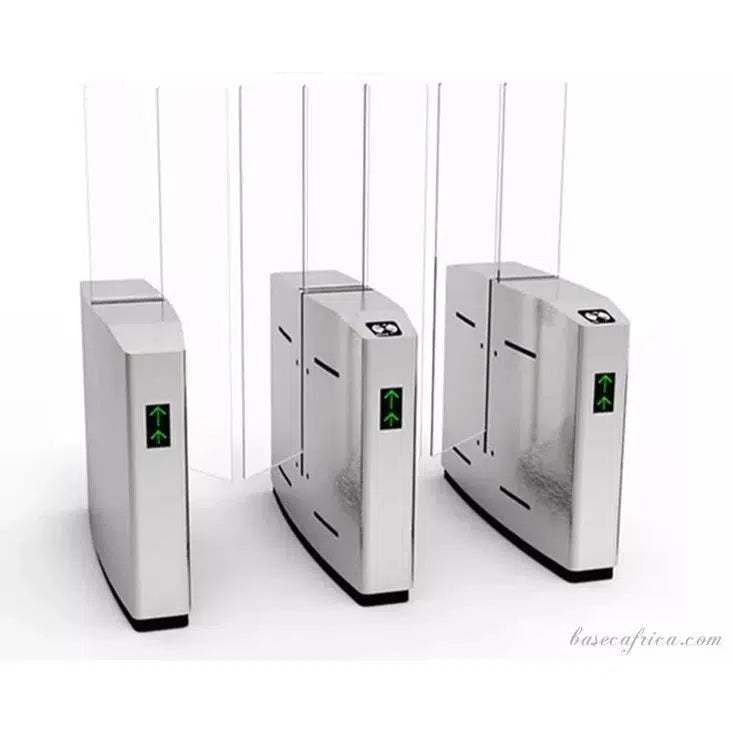

⚠️ The image may show 2 or 3 lanes for illustration. Each unit is sold per lane (per unit).

There are two unit types:

Single-Motor Unit (Left & Right Units)

One motor, one glass side
Works as entry-only or exit-only lane

Double-Motor Unit (Middle Unit)

Two motors, glass on both sides
Used only as the center lane when building 3 lanes or more

Minimum Purchase Requirement

✅ Minimum usable setup = 2 units

If customer is buying 2 units only

Buy two single-motor units
One faces entry, the other faces exit
Middle (double-motor) unit is not required

If customer is buying 3 units or more

The middle double-motor unit becomes required
Layout: Single-motor (Left) + Double-motor (Middle) + Single-motor (Right)

❌ Middle unit cannot be used alone
❌ Single-motor unit cannot be used alone

Ideal Applications

Offices, estates, banks, government buildings, schools, gyms, clubs, high-end facilities, data centers, restricted areas.
