IP68 Waterproof Under Vehicle Inspection Robot for Trucks/Cars/Buses
Regular price ₦0.00 ₦12,640,000.00
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Product Description

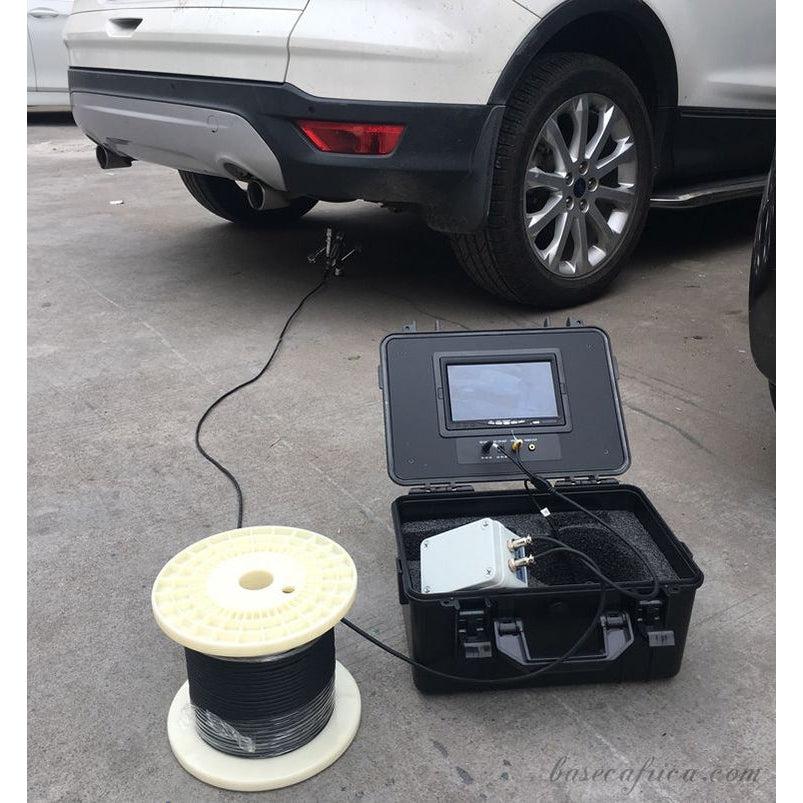

The Robotic UVSS (Under Vehicle Surveillance System) is a state-of-the-art, waterproof inspection robot designed for thorough under-vehicle inspections of trucks, cars, and buses. This advanced system comprises a robust crawling robot, high-resolution cameras, a durable cable, and a user-friendly main controller, all engineered for optimal performance in various environments.
The robot is capable of operating with multiple camera configurations, allowing for versatile inspection capabilities. The main controller provides intuitive control over the robot's movements, enabling operators to adjust crawling speed, navigate forward and backward, and execute turns with precision. Additionally, the controller allows for comprehensive camera control, including vertical adjustments, rotation, light brightness modulation, zooming, and switching between front and back views. It also displays critical operational data, such as the robot's working status, pressure readings, crawling distance, date, and time.
Features
- Protection Grade: IP68 rated for superior waterproofing, allowing operation in environments submerged up to 10 meters.
- Temperature Range: Operates effectively in extreme temperatures from -25°C to 50°C.
- Mobility: Equipped with a 4-wheel drive system, achieving a maximum speed of 30 m/min for efficient inspections.
- Gradeability: Capable of navigating inclines with a gradeability of 0-90°.
- Safety Protections: Features comprehensive circuit protection, including safeguards against overcurrent and overvoltage to ensure reliable operation.
- Illumination: Fitted with 12 high-intensity LED lights, providing a maximum power output of 90W and an illumination intensity of 1500cd for clear visibility in low-light conditions.
- Recovery Lens: Includes a rear lens to assist in the recovery of the crawler and to verify that the cable is properly wound.
- Locating Function: Integrated signal projection technology for precise location tracking of the robot during operations.
- Compatibility: Highly compatible with various models, cables, and lenses, making it adaptable for different inspection scenarios.
Specifications
- Display: 7-inch TFT-LCD for clear visual feedback.
- Camera Lift: Electric lift capability of 266mm for versatile camera positioning.
- Camera Angle: Wide-angle view of 140° for comprehensive coverage.
- Testing Cable Length: Available in lengths ranging from 10m to 160m to suit various inspection needs.
- Pipe Diameter Compatibility: Effective for inspecting pipes with diameters between 10cm and 30cm.
- Camera Resolution: High pixel count of 4,800,000 (720x480) for detailed imaging.
- Crawler Design: Features a 4-wheel drive system powered by 4 motors for enhanced mobility and stability.
This Robotic UVSS is an essential tool for security and maintenance professionals, providing reliable and efficient under-vehicle inspections in a variety of settings.
