BAS6040XBS Multi-Energetic X-ray Baggage Scanner
Regular price ₦16,000,000.00
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
BAS6040XBS Multi-Energetic X-ray Baggage Scanner
High-Performance Baggage Screening for Enhanced Security
The BAS6040XBS Multi-Energetic X-ray Baggage Scanner is engineered for precision, speed, and reliability in high-security environments such as airports, courthouses, transportation terminals, logistics centers, and government facilities. Built with globally sourced components and cutting-edge image processing technology, the BAS6040 delivers unmatched clarity and accuracy in threat detection.
🔍 Key Features
-
Large Industrial Display
Comes with a 19-inch (or larger) high-resolution industrial-grade monitor, offering a clear, detailed view of scanned items. -
Advanced Detection Hardware
Integrated with a Japan-imported detector for precise object identification. -
High-Efficiency X-ray Source
Uses a U.S.-imported X-ray tube as its core, ensuring stable radiation emission and long operational life. -
Precision Drum Mechanism
Equipped with a Germany-made Yintono linear drum for smooth and accurate baggage transport. -
Low-Noise Conveyor Belt
Features a green belt designed for low noise operation — perfect for quiet security zones. -
Multiple Imaging Modes
Supports:-
Full Color Mode
-
Black & White Mode
-
Reverse Contrast (black & white inversion)
For optimal visibility across material types.
-
-
Powerful Processing Engine
Operates on an industrial-grade DSP embedded processor, enabling real-time, high-speed image processing. -
Ergonomic User Interface
User-friendly with soft-touch floating control buttons, enhancing operational comfort and speed. -
Comprehensive Operation Kit
Includes:-
1x Specialized Toolbox
-
1x Keyboard
-
1x Mouse
-
⚙️ Technical Specifications
-

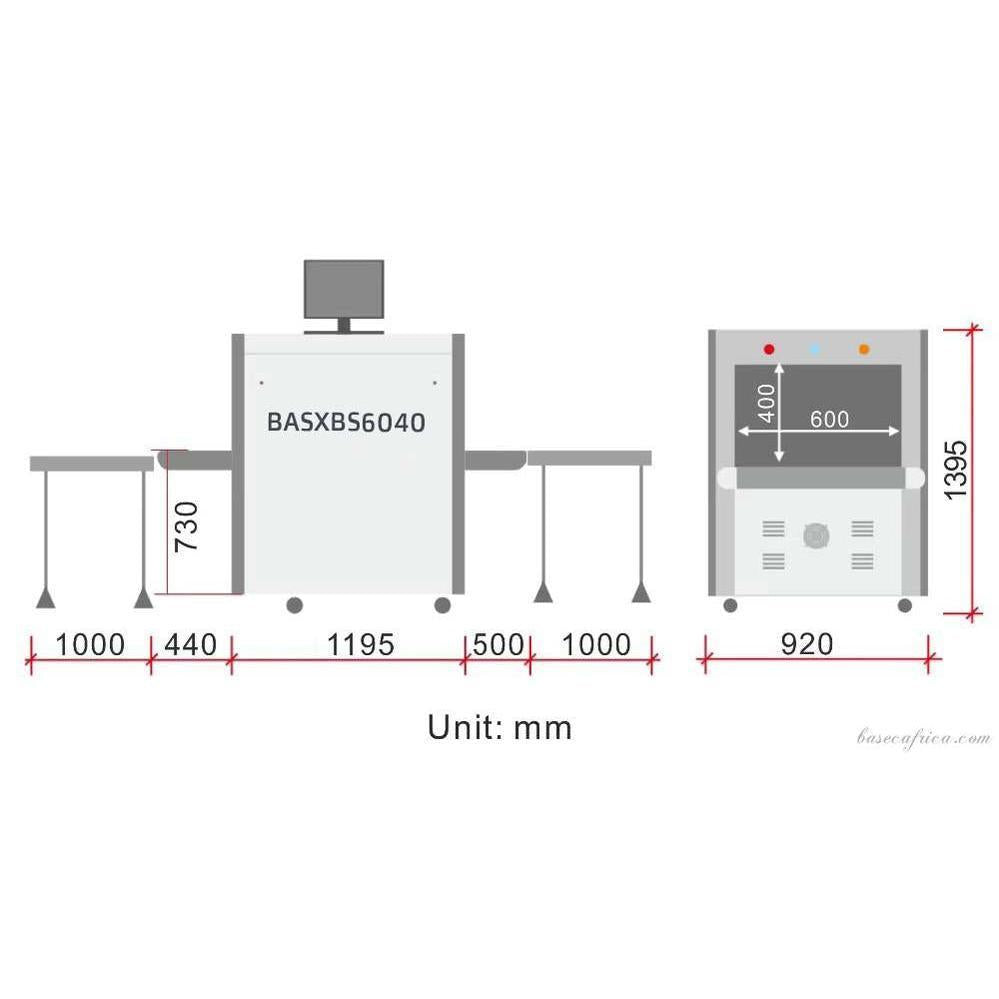

Tunnel Size: 610 mm (W) × 410 mm (H) (±10mm)
-
Conveyor Speed: 0.22 m/s
-
Maximum Load Capacity: 180 kg
-
X-ray Generator Voltage: 140kV (Optional: 160kV for increased penetration – additional $600/set)
-
X-ray Dose per Inspection: 1.5 µGy
-
Wire Resolution: 0.0787 mm metal line
-
Penetration: 32 mm steel (43 mm available with 160kV option)
-
Penetration Resolution: Ø0.254 mm copper wire (AWG38) under three-step aluminum wedge (9.5mm, 15.9mm, 22.2mm)
-
Image Resolution: 1024 × 1280 pixels
-
Image Grey Level: 4096 levels
-
Film Safety: Guaranteed safe for ASA/ISO1600 film
-
Maximum Leakage Radiation: <0.01 µGy/h
✅ Why Choose the BAS6040?
-
High-precision scanning with international-grade components
-
Exceptional penetration and resolution for superior threat detection
-
Safe for sensitive film and equipment
-
Smooth, quiet operation with user-friendly controls
-
Ideal for mid-to-large baggage and packages in demanding security setups
