The BASXBS-8065D is a state-of-the-art double X-ray generator, multi-energy baggage scanner engineered for the highest security standards. Built for mission-critical screening in environments where accuracy, speed, and reliability are non-negotiable, this system delivers exceptional object penetration, crystal-clear resolution, and superior material discrimination.

Its dual-source X-ray technology provides unmatched image contrast, enabling operators to distinguish between organic, inorganic, and mixed materials with remarkable precision. This makes it the ideal solution for airports, transportation hubs, customs checkpoints, government installations, corporate security, and high-threat industrial sites where comprehensive screening is essential.

Core Performance Advantages

• Dual X-ray Source for Enhanced Detection
  Equipped with two American-imported high-performance X-ray tubes, the BASXBS-8065D achieves superior image clarity and contrast, improving threat detection accuracy and reducing false alarms.

• Precision Imaging with Advanced Detector Technology
  Features a Japan-imported high-resolution detector that captures every detail with exceptional accuracy, ensuring that even the smallest objects and potential threats are visible to the operator.

• Industrial-Grade Build for Continuous Operation
  Engineered with a German Yintono linear drum system, the scanner delivers smooth, vibration-free scanning, ensuring consistent, uninterrupted performance during peak operational hours.

• Quiet, Efficient Baggage Handling
  Utilizes a durable green conveyor belt designed for low-noise operation, allowing deployment in noise-sensitive areas without compromising efficiency.

Advanced Imaging & Analysis Features

• Multiple Imaging Modes – Switch between black & white, color imaging, and black & white contrast reversal for comprehensive inspection capabilities.

• High-Speed Embedded Processing – Powered by an industrial-grade DSP embedded processor for rapid image rendering and real-time analysis.

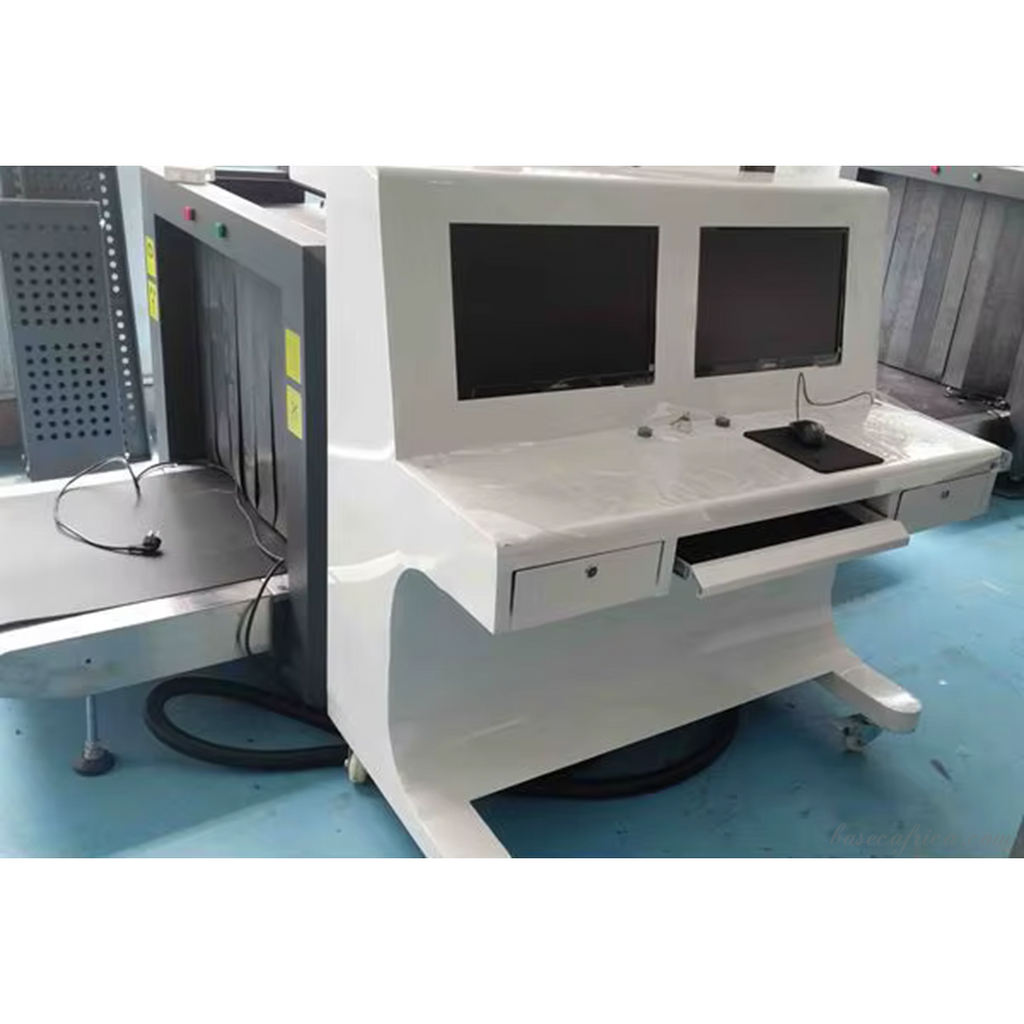

• User-Friendly Control Panel – Soft-touch floating button panel with ergonomic layout for ease of use, reducing operator fatigue during long shifts.

• Ultra-Sharp Display – Large 19-inch+ industrial-grade high-resolution monitor with 1024 × 1280 pixels and 4096 grey levels for maximum image clarity and material differentiation.

Technical Specifications

• Tunnel Size: 800 mm (W) × 650 mm (H) ±10 mm

• Conveyor Speed: 0.22 m/s

• Max Conveyor Load: 200 kg

• X-ray Generator Voltage: 160 kV

• X-ray Dose per Inspection: ≤ 1.5 µGy

• Wire Resolution: 0.0787 mm metal line

• Penetration Capability: 38 mm steel

• Penetration Resolution: Ø 0.202 mm copper wire (AWG40) under three-step aluminum wedge (9.5 mm, 15.9 mm, 22.2 mm)

• Film Safety: ASA/ISO1600 film guaranteed safe

• Radiation Leakage: < 0.01 µGy/h (well below international safety limits)

• Image Grey Levels: 4096 levels for superior contrast detail

Operational Reliability

The BASXBS-8065D is built for continuous operation in demanding security environments. Its rugged construction, superior shielding, and safety compliance ensure long-term durability, minimal downtime, and operator protection. The low-radiation design complies with international health and safety regulations, guaranteeing both passenger and staff safety.

Included Accessories

• Special precision maintenance toolbox

• Industrial-grade keyboard & optical mouse

• Heavy-duty power cables and connectors

• Operator manual & training materials

Packaging & Shipping

• Box 1 Dimensions: 300 × 121 × 179 cm

• Box 2 Dimensions: 115 × 90 × 142 cm

• Total Weight: 850 kg

• Packaging Type: Export-grade wooden crates designed to withstand international shipping conditions

This BASXBS-8065D Double X-ray Generator Multi-Energy Baggage Scanner is the ultimate choice for organizations that demand uncompromising screening accuracy, operational reliability, and enhanced threat detection capabilities.
