BASXBS6550-A Single-Energetic X-ray Baggage Scanner
Regular price ₦13,000,000,000.00
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.

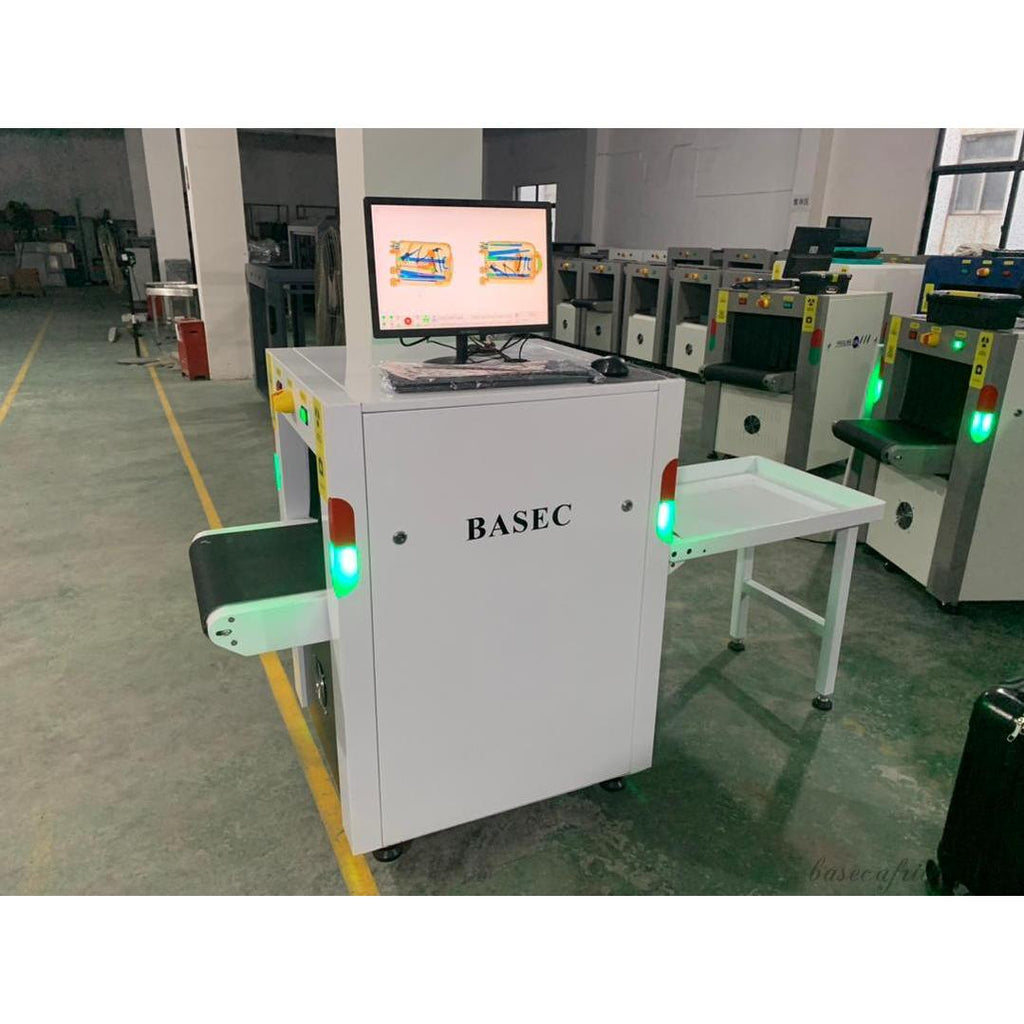

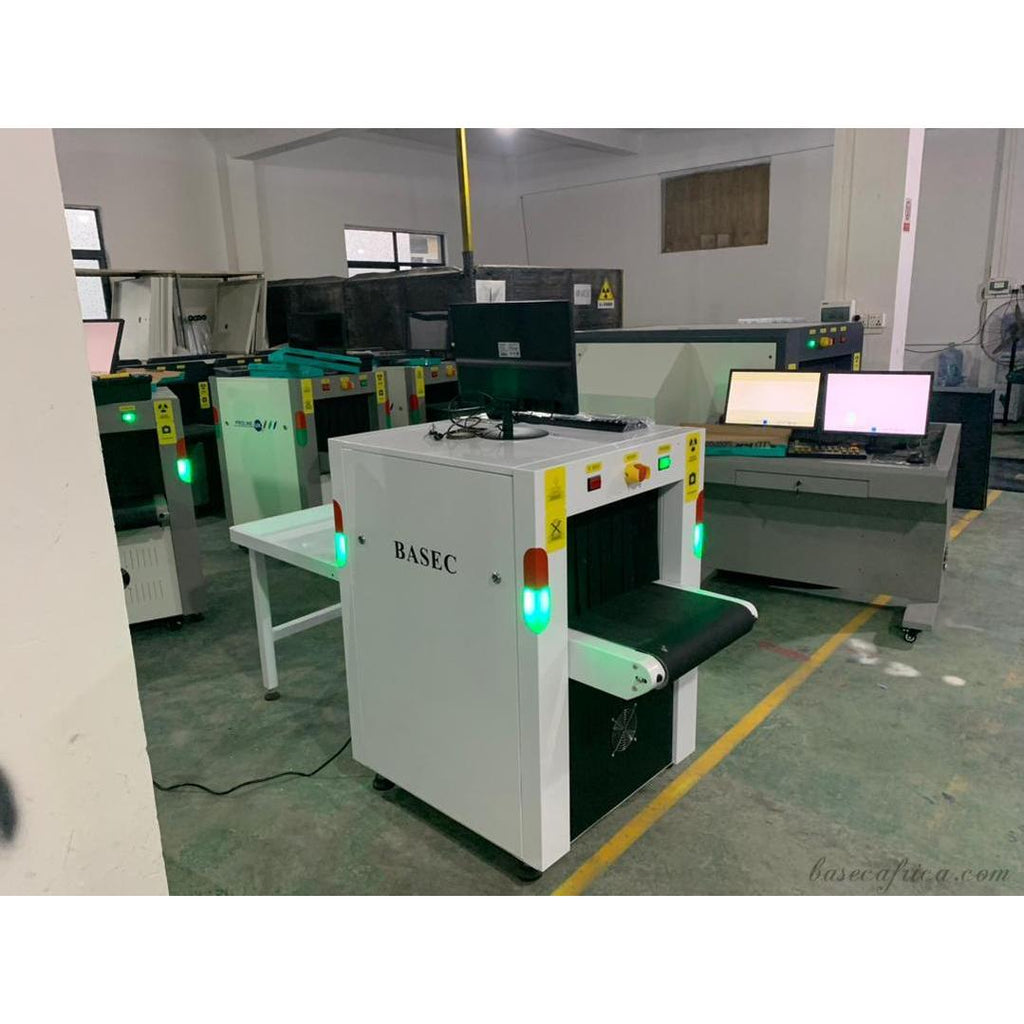

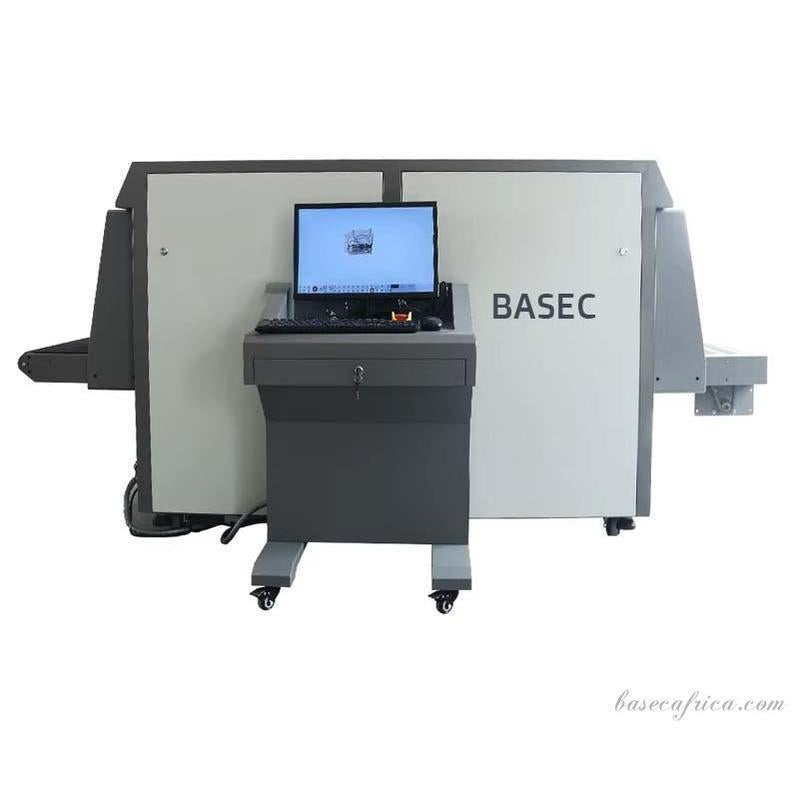

BASXBS6550-A Single-Energetic X-ray Baggage Scanner
Efficient, Accurate & Affordable Security Scanning for Mid-Sized Baggage
The BASXBS6550-A is a robust single-energetic X-ray baggage scanner built for mid-sized parcel and luggage inspection across security-critical environments such as airports, government buildings, customs, logistics centers, correctional facilities, and hotels. Powered by globally sourced components and an industrial-grade DSP processor, this model offers excellent penetration and image clarity for threat detection, while remaining cost-effective.
🔍 Key Features:
-
19” (or Larger) Industrial Display
High-definition 1024 × 1280 pixel resolution screen for clear and accurate threat identification. -
High-Precision Detector
Fitted with a Japan-imported detector, ensuring superior imaging performance and consistency. -
Single X-ray Source
Uses a U.S.-imported X-ray tube core, optimized for low-dose, high-reliability scanning. -
Premium German Drum System
Integrated with a linear Germany Yintono drum for smooth and precise object movement. -
Low-Noise Conveyor System
Utilizes a green belt with quiet operation, ideal for professional and public environments. -
Multiple Imaging Modes
Includes:-
Standard black and white
-
Full color
-
Black & white contrast reversal
Enables better material discrimination and enhanced object visualization.
-
-
Industrial DSP Processor
Designed for real-time, high-efficiency image processing in demanding scenarios. -
User-Friendly Interface
Comes with floating soft-touch buttons, 1x keyboard, 1x mouse, and a dedicated toolbox for maintenance and operation support.
⚙️ Technical Specifications:
-
Tunnel Size: 650 mm (W) × 500 mm (H)
-
Conveyor Speed: 0.2 m/s
-
Conveyor Max Load: 180 kg
-
X-ray Generator Voltage: 100kV
-
X-ray Dose per Inspection: 2 µGy
-
Wire Resolution: 0.0787 mm metal line
-
Steel Penetration Capability: 12 mm
-
Penetration Resolution: Ø0.202 mm copper wire (AWG32) under 3-step aluminum wedge (9.5mm, 15.9mm, 22.2mm)
-
Image Grey Level: 4096
-
Film Safety: Guaranteed safe for ASA/ISO1600 film
-
Max Leakage Radiation: <0.1 µGy/h
📦 Packaging & Logistics:
-
Wooden Box Size 1: 237 × 105 × 166 cm
-
Wooden Box Size 2: 86 × 87 × 142 cm
-
Total Weight: 500 kg
✅ Why Choose the BASXBS6550-A?
-
Cost-effective single-energy solution for mid-sized baggage scanning
-
Advanced image processing with high-resolution display
-
Safe for sensitive films and low radiation leakage
-
Compact packaging for easier transport and installation
-
Built with trusted Japanese, American, and German components
