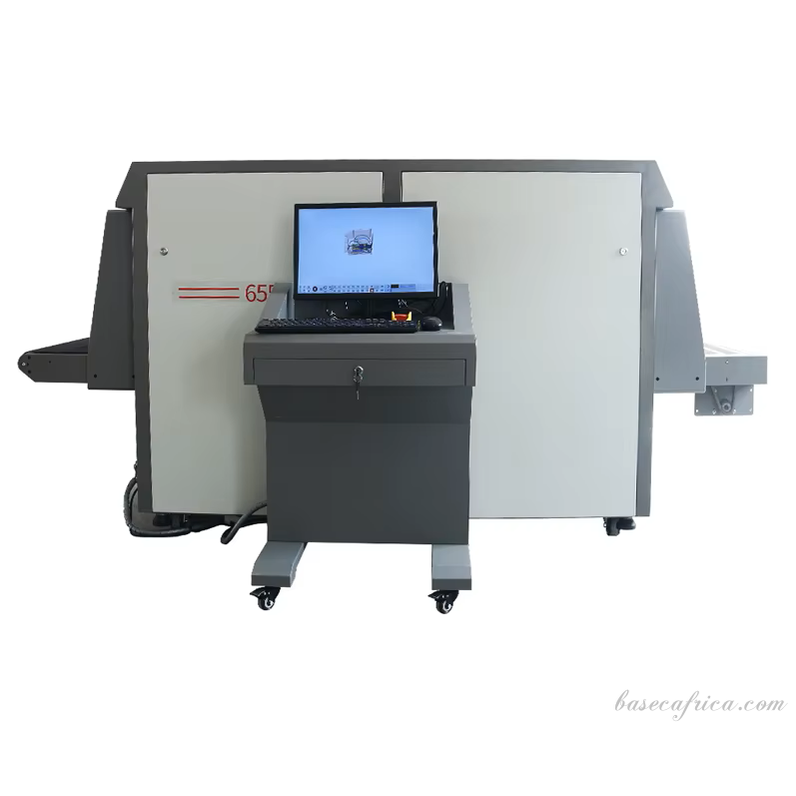

BASXBS6550-D X-ray Generator Multi-Energy Baggage Scanner
Overview
The BASXBS6550-D X-ray Generator Multi-Energy Baggage Scanner is a high-performance security inspection system designed for airports, customs, logistics centers, government facilities, and other high-security locations. It combines cutting-edge X-ray technology with dual energy sources for superior detection, resolution, and image clarity, enabling operators to identify threats and prohibited items with precision.
Key Features
1. Display & Interface
-
Large Industrial Display: 19-inch (or larger) high-resolution display screen for clear imaging.
-
Image Resolution: 1024 × 1280 pixels with 4096 grey levels for enhanced image detail.
-
User Interface: Floating, soft-touch button operation with keyboard and mouse included.
2. Advanced Detection Technology
-
Detector: Premium Japan-imported detector for high sensitivity and accuracy.
-
Double X-ray Source: Equipped with U.S.-imported tube for improved penetration and image clarity.
-
Drum: Linear Germany Yintono drum for consistent and stable scanning performance.
-
Low-Noise Conveyor Belt: Durable green belt design for quiet operation.
3. High Performance
-
Tunnel Size: 650(W) × 500(H) mm (±10 mm) to accommodate large baggage.
-
Conveyor Speed: 0.22 m/s for efficient throughput.
-
Maximum Load: Supports up to 200 kg per inspection.
-
Wire Resolution: Detects metal lines as thin as 0.0787 mm.
-
Penetration Ability: Penetrates up to 40 mm of steel.
-
Penetration Resolution: Identifies 0.202 mm copper wire under a three-step aluminum wedge (9.5 mm, 15.9 mm, 22.2 mm).
4. Safety & Reliability
-
X-ray Dose per Inspection: 1.5 µGy, ensuring operator and public safety.
-
Film Safety: Guarantees ASA/ISO1600 film protection.
-
Leakage Radiation: Less than 0.01 µGy/h.
5. Processing & Operation
-
Processor: Industrial-grade DSP embedded system for fast and accurate image processing.
-
Toolbox: Includes a dedicated toolbox for maintenance and accessories.
Technical Specifications
| Parameter | Specification |
|---|---|
| Tunnel Size | 650(W) × 500(H) mm (±10 mm) |
| Conveyor Speed | 0.22 m/s |
| Max Load | 200 kg |
| X-ray Generator Voltage | 160 kV |
| Wire Resolution | 0.0787 mm |
| Steel Penetration | 40 mm |
| Penetration Resolution | 0.202 mm copper wire |
| Film Safety | ASA/ISO1600 |
| Leakage Radiation | <0.01 µGy/h |
| Image Resolution | 1024 × 1280 pixels |
| Image Grey Level | 4096 |
Packaging
-
Wooden Box Size #1: 320 × 105 × 166 cm
-
Wooden Box Size #2: 86 × 87 × 142 cm
Applications
-
Airports & Border Security
-
Customs Inspection
-
Logistics & Courier Hubs
-
Government & Military Facilities
-
Event Venues & High-Security Buildings
