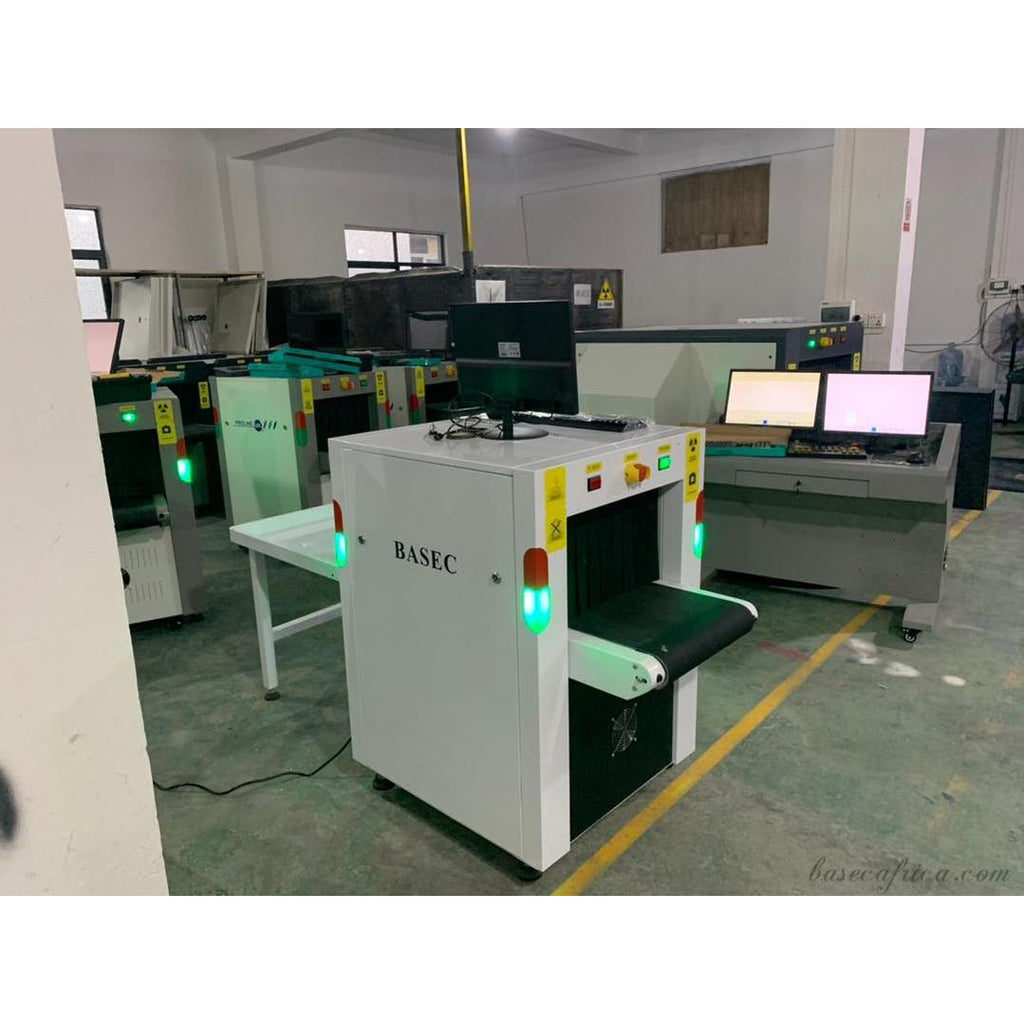

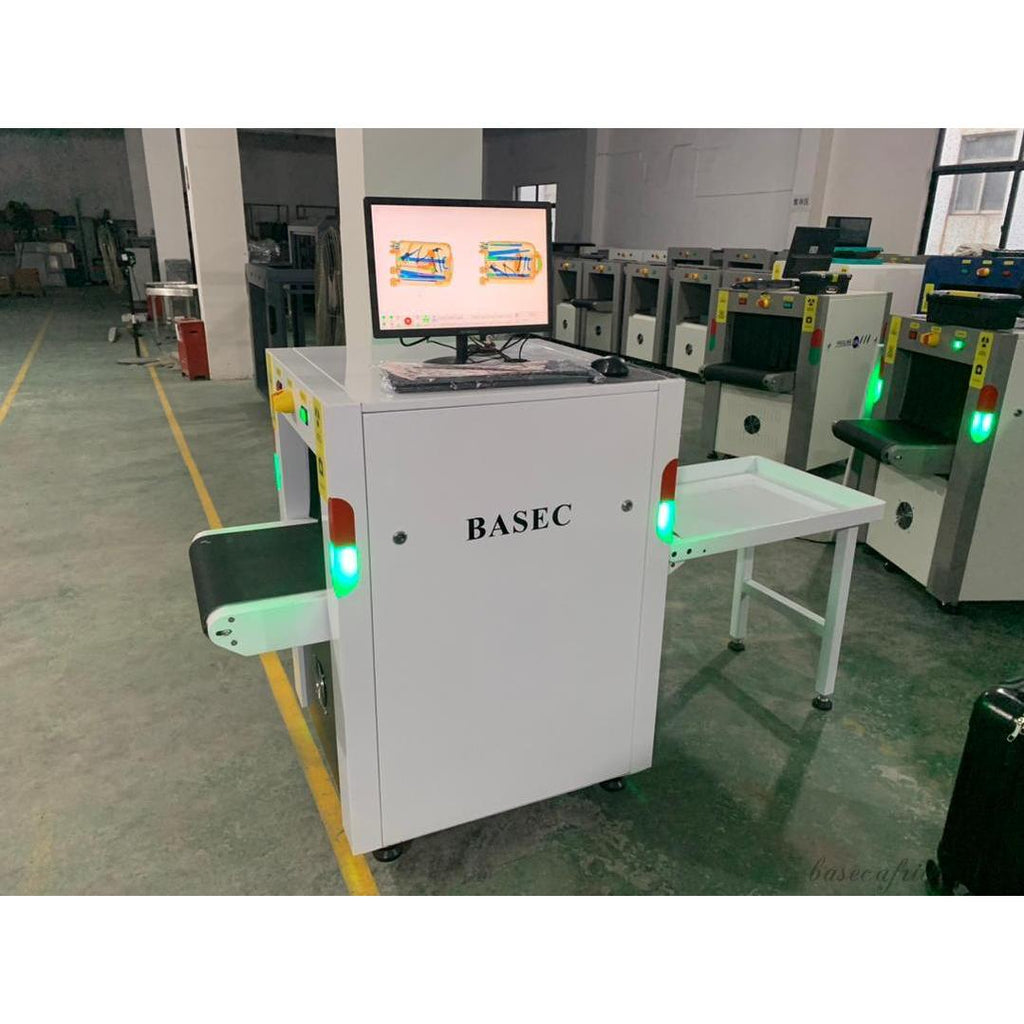

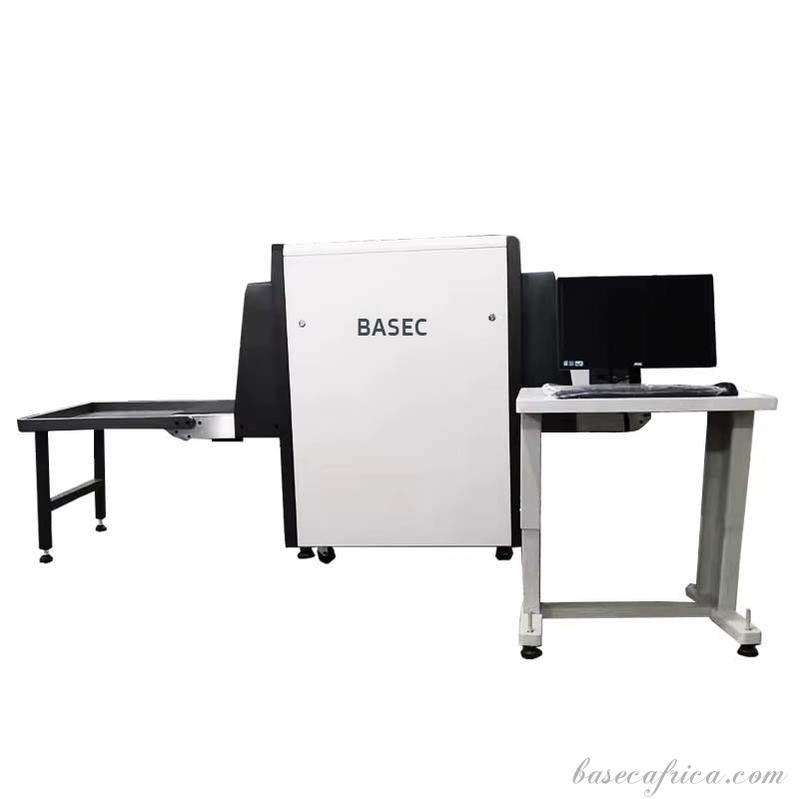

BASXBS7555-C Multi-Energetic Distinguish Objects X-ray Baggage Scanner
Regular price ₦23,200,000.00
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
BASXBS7555-C Multi-Energetic Distinguish Objects X-ray Baggage Scanner
Overview
This Multi-Energetic Distinguish Objects X-ray Baggage Scanner is a state-of-the-art security screening system designed for high-traffic locations such as airports, customs, logistics hubs, government buildings, and event venues. Its advanced multi-energy imaging technology enables clear identification of different materials, ensuring accurate detection of weapons, explosives, contraband, and prohibited items.
Key Features
1. Display & Control
-
19-inch or larger industrial-grade display for sharp, detailed imagery.
-
Image Resolution: 1024 × 1280 pixels with 4096 grey levels for clear object distinction.
-
User Interface: Floating, soft-touch buttons with keyboard and mouse included.
2. Detection System
-
Detector: Precision Japan-imported detector for high sensitivity and stability.
-
X-ray Source: Single U.S.-imported tube for consistent imaging.
-
Drum: Germany Yintono linear drum for smooth operation.
-
Belt: Low-noise green conveyor belt, ideal for quiet security areas.
3. Scanning Performance
-
Tunnel Size: 750(W) × 550(H) mm (±10 mm) to handle large baggage.
-
Conveyor Speed: 0.22 m/s for fast throughput.
-
Max Load: 180 kg per scan.
-
Wire Resolution: Detects metal lines as fine as 0.0787 mm.
-
Steel Penetration: 30 mm (optional 40 mm with a 160 kV generator at an extra $800/set).
-
Penetration Resolution: Detects 0.202 mm copper wire (AWG38) under a three-step aluminum wedge (9.5 mm, 15.9 mm, 22.2 mm).
4. Safety & Compliance
-
X-ray Dose per Inspection: 2 µGy.
-
Film Safety: Protects ASA/ISO1600 film from damage.
-
Leakage Radiation: Less than 0.01 µGy/h — well within global safety standards.
5. Processing & Accessories
-
Processor: Industrial-grade DSP embedded processor for high-speed image processing.
-
Toolbox: Special maintenance toolbox included.
Technical Specifications
| Parameter | Specification |
|---|---|
| Tunnel Size | 750(W) × 550(H) mm (±10 mm) |
| Conveyor Speed | 0.22 m/s |
| Max Load | 180 kg |
| X-ray Generator Voltage | 140 kV (optional 160 kV upgrade for 40 mm penetration) |
| Wire Resolution | 0.0787 mm |
| Steel Penetration | 30 mm (40 mm optional) |
| Penetration Resolution | 0.202 mm copper wire |
| Film Safety | ASA/ISO1600 |
| Leakage Radiation | <0.01 µGy/h |
| Image Resolution | 1024 × 1280 pixels |
| Image Grey Level | 4096 |
| Wooden Box Size | 237 × 105 × 166 cm |
| Overall Weight | — (spec not provided) |
Applications
-
Airports & Border Control
-
Customs & Logistics Centers
-
Government & Military Installations
-
Corporate & Industrial Security
-
Large-Scale Event Venues
