Fixed Under Vehicle Bomb Detector Checking System - FIXED UVSS

Fixed Under Vehicle Bomb Detector Checking System - FIXED UVSS

Availability: Available

Product type: Uner Vehicle Inspection System

Vendor: basecafrica

₦17,920,000.00 ₦19,200,000.00

Product Description: For scanning the botton of the vehicle, display the image on the monitor with the camera etc.1. Anti terrorism, drugs,...

Subtotal: ₦17,920,000.00

Qty:

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Guaranteed safe checkout:

files/download_5_2bbaf150-70ca-4d3a-a235-928801f368b9.png

Product Description:

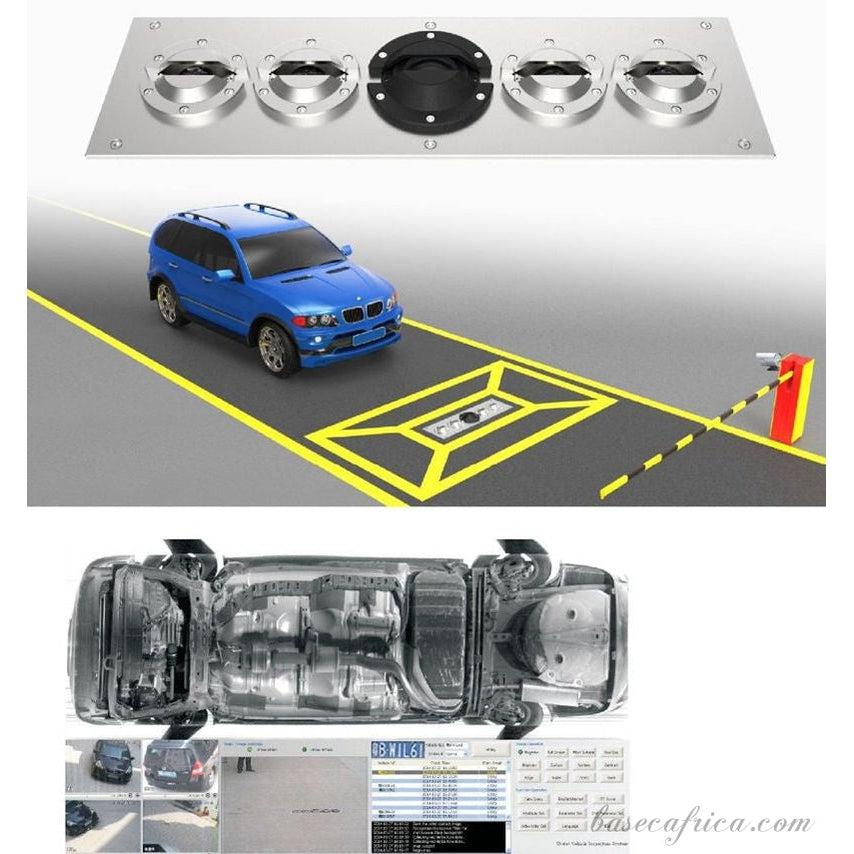

For scanning the botton of the vehicle, display the image on the monitor with the camera etc.
1. Anti terrorism, drugs, bombs weapons, force protection and homeland security.
2. License Plate & Vehicle Recogniction;
3. Vehicle Inspection Systems that participate to damges detection,anomalies detection.
4. System support color scanning images displayed.

Features

1. Auto digital line scan, high-resolution undercarriage imaging
2. High automation, easy to be used
3. Applicable to variety of vehicles, wide vision
4. Test will be completed during the vehicle maneuvers no stopping, adapted to different speed
5. The UVSS is able to handle vehicles moving at speed ranging from 0-40km/hr
6. Undercarriage image can be stored, retrieved, searched or compared with other images
7. A variety of image processing methods: enlarge(Magnify current and past images 4x Zoom), stretching and cutting
8. Multi entrance management model, management, and statistics of entering and exiting vehicles
9. Flexible detection process can be made on site to satisfy the needs of various work conditions
10. Option of automatic number plate recognition system available, associative storage of various vehicle information and undercarriage images
11. Image monitoring, video recording for different scenario
12. The system able to transfer the work record report to Microsoft excel sheet
13. Support networking and remote monitoring
14. System support multi language and color images displayed

1. Auto digital line scan, high-resolution undercarriage imaging

2. High automation, easy to be used

3. Applicable to variety of vehicles, wide vision

4. Test will be completed during the vehicle maneuvers no stopping, adapted to different speed

5. The UVSS is able to handle vehicles moving at speed ranging from 0-40km/hr

6. Undercarriage image can be stored, retrieved, searched or compared with other images

7. A variety of image processing methods: enlarge(Magnify current and past images 4x Zoom), stretching and cutting

8. Multi entrance management model, management, and statistics of entering and exiting vehicles

9. Flexible detection process can be made on site to satisfy the needs of various work conditions

10. Option of automatic number plate recognition system available, associative storage of various vehicle information and undercarriage images

11. Image monitoring, video recording for different scenario

12. The system able to transfer the work record report to Microsoft excel sheet

13. Support networking and remote monitoring

14. System support multi language and color images displayed

Advantage of UVSS

1. No need to park vehicle, can bear speed below 40km/h
2. Whole image display on monitor, can zoom, playback, sign in the images
3. Operator can zoom and save image
4. Inductive loop sensor

1. No need to park vehicle, can bear speed below 40km/h

2. Whole image display on monitor, can zoom, playback, sign in the images

3. Operator can zoom and save image

4. Inductive loop sensor

Embedded Under Vehicle Imaging Equipment :

1. Camera: Sensor: line scans CCD, Resolution: 2048, Power Supply: 24VDC, 5A Shutter speed:1/50 to 1/20000 or better
2. Illumination: LED, Power Supply: 24VDC, 150W
3. Size: 1200mm x 350mm
4. Operating Temperature Range: -20 °C to +60 °C
5. Max Field of view :170degree ; Camera passed CE certificate
6. Water-proof (IP68) Scanning Unit ,bear the weight of 40 tons

1. Camera:
Sensor: line scans CCD, Resolution: 2048, Power Supply: 24VDC, 5A

Shutter speed:1/50 to 1/20000 or better

2. Illumination: LED, Power Supply: 24VDC, 150W

3. Size: 1200mm x 350mm

4. Operating Temperature Range: -20 °C to +60 °C

5. Max Field of view :170degree ; Camera passed CE certificate

6. Water-proof (IP68) Scanning Unit ,bear the weight of 40 tons

Controller:
1, Input	2channels induction coil
2, Output	1 Channel Switch Type 24VDC
3,Communication Port	RS485,ethernet(optional)
4,Operating Temperature	–10°c to 60°c

PC Specs :

1. CPU: Intel Centurion Duo or higher | Memory: 2G | Hard Disk: 500G

2. Display: 22” LCD, can choose a vice display to show the image independently

3. Scene Video Record: 4 channel, Compression algorithm of scene video: H264

Cars plate reading system software :

Pickup Device	1/4 inch CCD image sensor
System of Singal	PAL ,Optical Zoom is 27x
Horizontal Resolition	600TV Line
Min Illumination	0.5 lux/fl.2 Digital zoom is 10x
Backlight Compensation /AGC /White Balance	Auto ,
Elecctronic Shutter	1/50-1/100000 sec, S/NRatio:48db
