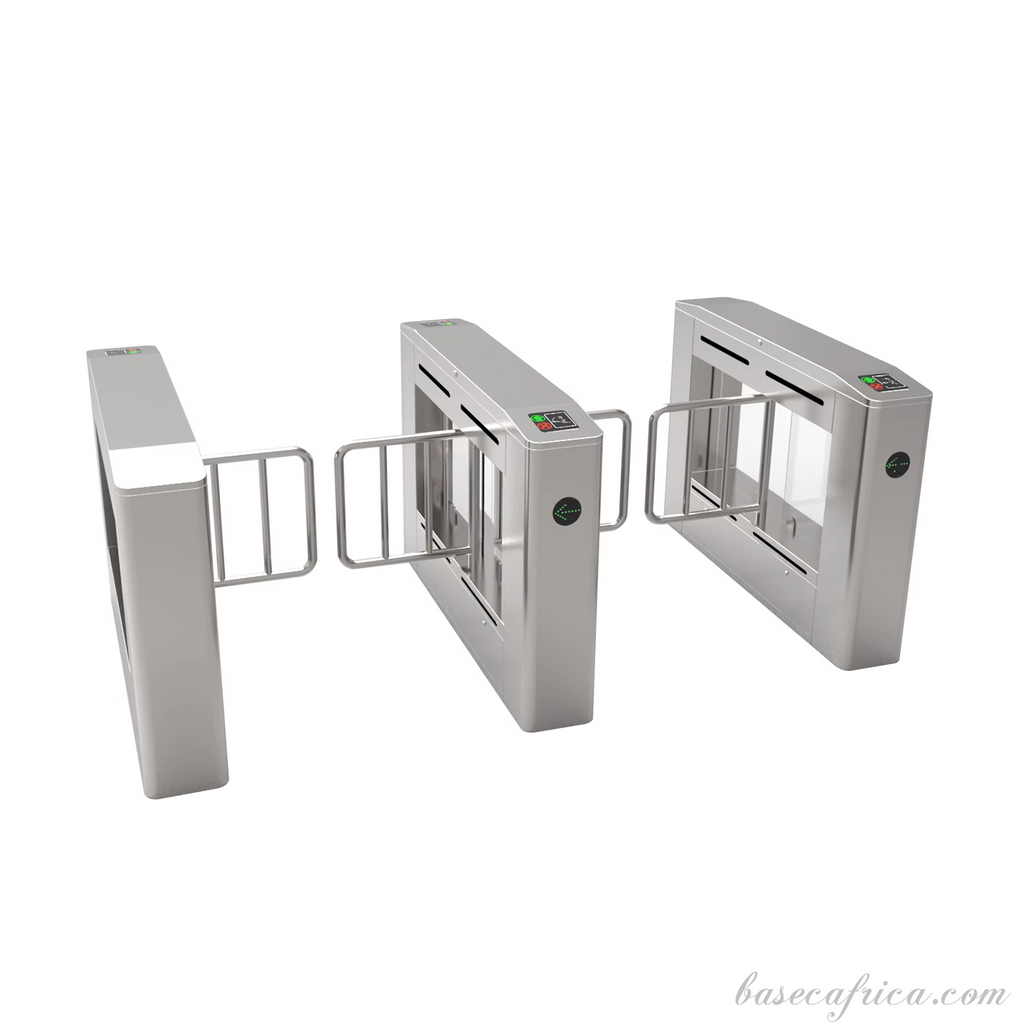

Basec BAS-SGB02 Bridge Swing Turnstile Gate With Control Board, Software, Encoder, RFID Reader and Cards( 1 Set )

Basec BAS-SGB02 Bridge Swing Turnstile Gate With Control Board, Software, Encoder, RFID Reader and Cards( 1 Set )

Availability: Available

Product type: Turnstiles

Vendor: basecafrica

Regular price ₦1,300,000.00

The Basec BAS-SGB02 Bridge Swing Turnstile Gate is a motorized pedestrian access control system designed for secure, orderly, and flexible entry management...

Single Motor

Double Motor

Subtotal: ₦1,300,000.00

Qty:

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Guaranteed safe checkout:

files/download_5_2bbaf150-70ca-4d3a-a235-928801f368b9.png

The Basec BAS-SGB02 Bridge Swing Turnstile Gate is a motorized pedestrian access control system designed for secure, orderly, and flexible entry management in corporate, commercial, and institutional environments.

Featuring a bridge-style stainless steel housing and swing barrier arm, this model provides a balance between open access design and controlled security, making it suitable for both single-lane installations and multi-lane turnstile configurations.

Each unit is supplied as a complete access-control combo set, ready for immediate installation and expandable to biometric and smart authentication systems.

Key Features

Bridge Swing Turnstile Design with premium stainless-steel finish
Motorized Swing Barrier for smooth and silent operation
Anti-Reverse Entry & Anti-Tailgating Control
LED Direction Indicators for user guidance
Emergency Auto-Open / Free-Pass Function during power failure
Designed for medium to high pedestrian traffic

Technical Specifications (BAS-SGB02)

Type: Bridge Swing Turnstile Gate
Body Material: Stainless Steel (SUS304 / equivalent)
Barrier Type: Swing Arm / Swing Gate
Drive Mode: Motor-driven swing mechanism
Working Voltage: AC 220V ±10% (50/60Hz)
Control Voltage: DC 24V
Passage Width: 550mm – 600mm (customizable)
Opening / Closing Speed: 0.3 – 0.6 seconds
Throughput Capacity: 25 – 35 persons per minute
Operating Environment: Indoor / Semi-outdoor
Working Temperature: -20°C to 60°C
Communication Interface: Dry Contact / Relay / RS485
Emergency Mode: Auto-open / Free-pass supported

Access Control & System Integration

Inbuilt Access Control Board
RFID Reader
Access Control Software (Free)
Encoder for card enrollment & management
Expandable to support:
- Fingerprint Access Control
- Facial Recognition Access Control
- QR / Barcode Scanner
- NFC Mobile Phone Access
- PIN / Keypad Access

What’s Included (1 Unit / 1 Set)

Basec BAS-SGB02 Bridge Swing Turnstile Gate (Single Unit)
Inbuilt Control Board
RFID Reader
10pcs RFID Cards (Free)
Encoder
Access Control Software
Integration-ready wiring support

Important Configuration & Pricing Explanation

⚠️ Images may show multiple units for illustration.
Each turnstile is sold per unit (per set).

This model comes in two different unit types:

1️⃣ Single-Motor Units (Side Units)

One motor
One swing barrier
Can be used for entry or exit
Used on the left or right side
Lower cost

These units can be used alone if required, but they are more commonly installed in pairs or as part of a multi-lane system.

2️⃣ Double-Motor Unit (Middle Unit)

Two motors
Swing barriers on both sides
Installed only in the middle position
Required when installing three (3) units or more
Higher cost than side units

Recommended Purchase Logic

Buying 1 unit:
- Possible, but usually for light-use or supervised areas
Buying 2 units:
- Two single-motor side units (entry & exit)
- Middle unit not required
Buying 3 units or more:
- Middle double-motor unit becomes mandatory
- Layout: Side + Middle + Side

For strong standalone use, tripod turnstiles are generally preferred.
This model remains flexible but is best used in structured access layouts.

Ideal Applications

Corporate offices
Banks & financial institutions
Schools & universities
Government buildings
Gyms & clubs
Commercial facilities
Reception and controlled lobby areas

Why Choose Basec Bridge Swing Turnstiles

✔ Clean, modern appearance
✔ Flexible installation options
✔ Seamless access-control integration
✔ Scalable lane configuration
✔ Designed for African operating conditions
