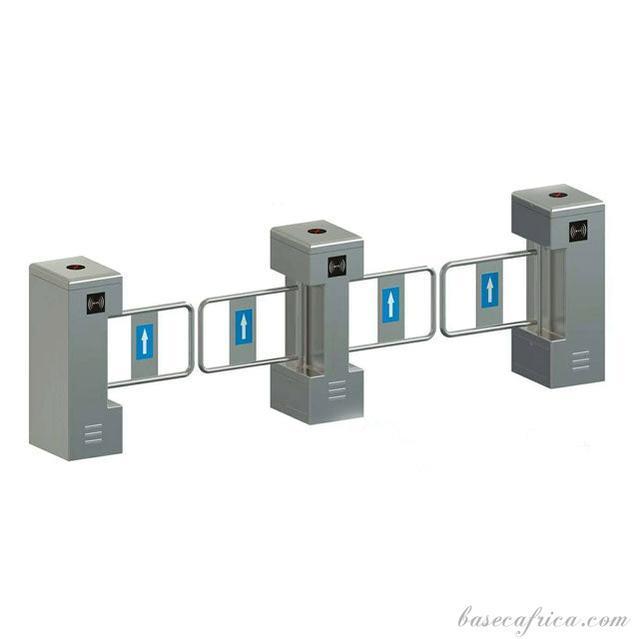

Vertical Swing Turnstile Door

: Available

: Turnstiles

: basecafrica

₦960,000.00 ₦1,040,000.00

Technical Parameters : Model UT570-C Brand UNIQSCAN Dimension 420*330*980 mm Material 304 # stainless steel Tickness Head: 1.8mm  Input Voltage AC220±10%,50HZ Driving...


Have a Question?

Be the first to ask a question about this.

Ask a Question

Technical Parameters :

Model UT570-C
Dimension 420*330*980 mm
Material 304 # stainless steel
Tickness Head: 1.8mm
Input Voltage AC220±10%,50HZ
Driving motor 24V
Traffic speed 35-40 persons/min
Flap Opening/Closing Time 0.2s
Channel width ≤1200mm
Swing arm transmission angle  180 degrees
Operating temperature -30ºC-70ºC
Communication interface RS485/TCP/IP
Working environment indoor and outdoor

Feature of the product:

1. Stainless steel box, box-type bevel shape, novel and beautiful, durable.

2. Waterproof, sunscreen, anti-temperature, anti-cold.

3. Access Prompt function: Red and green light prompt the passing information.

4. The programmable gates control state, with a variety of operating modes you can choose, you can set aone-way or two-way control

5. Compatible IC, ID, magnetic card, bar code card, and other control equipment.

6. Power failure emergency function after power channel automatically open, closed automatically after power-on, to meet the special needs of the user and the fire safety requirements

7. The control panel with counting function, LED digital display function (optional)

8. The standard input and output interface, is the best choice for system integrators

9. With automatic reset function, gate, not prevailing within the stipulated time, the system will automatically cancel the access permissions of the user.(the standard is gate turns on 5 seconds will be automatically reset)

10. Pinch, anti bumps function, Blockage when in the process of the swing arm reset within a predetermined time, click stop working automatically, the default reset again after a delay, and the intensity is very small(2kg)

11. Sound, light alarm function: with trespassing, trailing alarm

12. Scour protection function ,when the gate signal is not received, the stick is automatically locked

13. Fault detection and alarm function, user-friendly maintenance and use



Access control system: Combine with rfid / fingerprint/veins/facial readers, apply to factory, school, dormitory, residential, construction site.

Ticketing system: Combine with rfid/ QR code/barcode readers, apply to public park, tourism area, subway, bus station, air port, dock, play ground, gym, cinema, canteen.

Consumption system: Combine with IC card readers, apply to super market, canteen, gym, subway, bus station.

Time attendance system: Combine with rfid / fingerprint facial/veins readers, apply to factory, office, school, etc..
